30 degree male plug 2pin 1B solder type Lemo B Series Connectors FGA.1B.302.CLAD

Name

30 degree male plug 2pin 1B solder type Lemo B Series Connectors FGA.1B.302.CLAD

Brand Name:	OEM
Model Number:	FGA.1B.302.CLAD
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-10 working days
Payment Terms:	Western Union, MoneyGram, T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Type:

Lemo FGA

Size:

Lemo 1B

Keying:

30 Degree

Insert:

1B.302 : 2 Low Voltage

Temp (max):

+150 Deg C

Endurance (Shell):

5000 Mating Cycles

Packaging Details:

PP bag

Supply Ability:

50000pcs per month

Highlight:

10 pin lemo connector

,

multiple wire connectors

Product Description

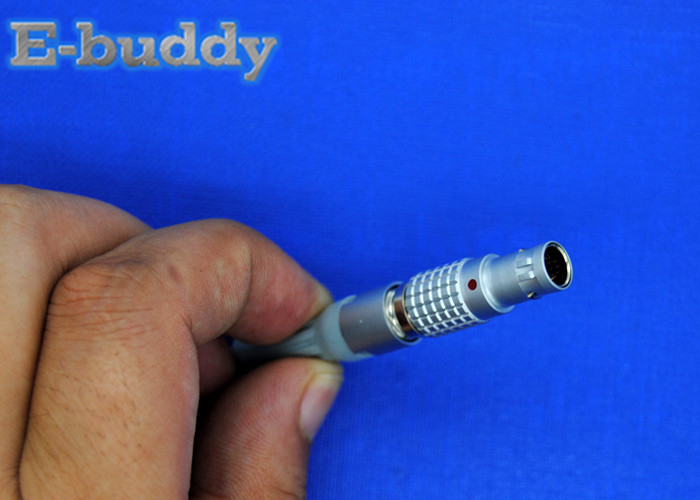

Lemo B Series 30 degree male plug 2pin 1B solder type connectors FGA.1B.302.CLAD

Features:

Shell Style/Model :FG*: Straight plug, cable collet
Keying: 2 keys (alpha=30, plug: male contacts, receptacle: female contacts)
Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Configuration: 1B.302 : 2 Low Voltage
Contact Type: Solder
Max. Matings: 5000
Contact Dia.: 1.3 mm (0.051in)
Bucket Dia.: 1 mm (0.039in)
Max. Solid Conductor: 0.5 mm^2 (AWG 20)
Max. Stranded Conductor: 0.5 mm^2 (AWG 20)
R (max): 3.6 mOhm
Vtest (contact-shell): 1350 V (AC), 1910 V (DC)
Vtest (contact-contact): 1500 V (AC), 2120 V (DC)

Cable assembly process :

Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
Screw the collet nut tightly
Hitch the sleeve to the corresponding step of collet nut.

30 degree male plug 2pin 1B solder type Lemo B Series Connectors FGA.1B.302.CLAD 0

Size and drawing:

30 degree male plug 2pin 1B solder type Lemo B Series Connectors FGA.1B.302.CLAD 1

30 degree male plug 2pin 1B solder type Lemo B Series Connectors FGA.1B.302.CLAD 2

30 degree male plug 2pin 1B solder type Lemo B Series Connectors FGA.1B.302.CLAD 3

Tags:

9 pin circular connector

multiple wire connectors

10 pin lemo connector
