Lemo B Series Right Angle PCB Socket 5pin EPG Printed Circuit Receptacle

Name

Lemo B Series Right Angle PCB Socket 5pin EPG Printed Circuit Receptacle

Brand Name:	OEM
Model Number:	EPG.1B.305
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-7 working days
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Model:

EPB 1B 305

Pin:

5pin

Shell Size:

Lemo 1B

Style:

Female Socket

Contact:

PCB Pins

Max. Matings:

5000

Packaging Details:

PP bag

Supply Ability:

90000pcs per month

Highlight:

Lemo B Series PCB Socket

,

Lemo B Series Printed Circuit Receptacle

,

EPG Printed Circuit Receptacle

Product Description

Right angle pcb socket Lemo compatible B series 5pin EPG 90 degree printed circuit receptacle

Features:

Lemo Right angle pcb socket
Lemo compatible B series 5pin EPG 90 degree printed circuit receptacle
Endurance (Shell):5000 mating cycles
Humidity (max):<=95% [at 60 deg C / 140 F]
IP Rating:50
Configuration:Brass (gold plated)
Housing Material:Brass chrome plated
Temp (min):-20 deg C
Temp (max):+150 deg C

Important Applications:

Medical Electronics
Test and Laboratary
Measurement Instrumentation
Data and Telecom Systems
Audio and video Applications
Military and Aerospace
Industrial Controls
Nuclear Technology

Size and drawing:

Lemo B Series Right Angle PCB Socket 5pin EPG Printed Circuit Receptacle 0

Custom service:

Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
Cable assembly service: we can supply cable assembly service according to your requirements.
Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
Cable assembly solution supply: We can make cable assembly service solution to meets you need.
Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

Corlorful Sleeve (Jacket):

Specification:

Material: Polyurethane material(PU)
Temperature range: -40°--- +80°
Color: Black, Red, Blue, White, Yellow, Green
Size: 00B/0B/1B/2B, 0K/1K/2K
Cable OD Range: 3.1mm—8.2mm

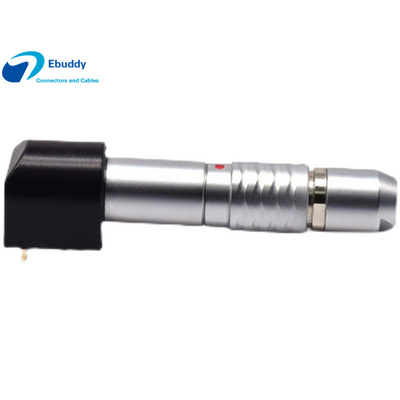

Lemo B Series Right Angle PCB Socket 5pin EPG Printed Circuit Receptacle 1

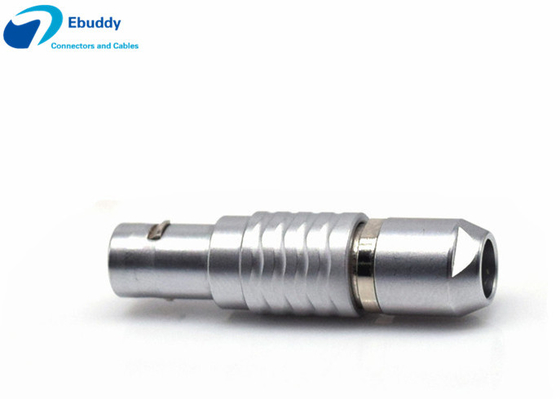

Lemo B Series Right Angle PCB Socket 5pin EPG Printed Circuit Receptacle 2

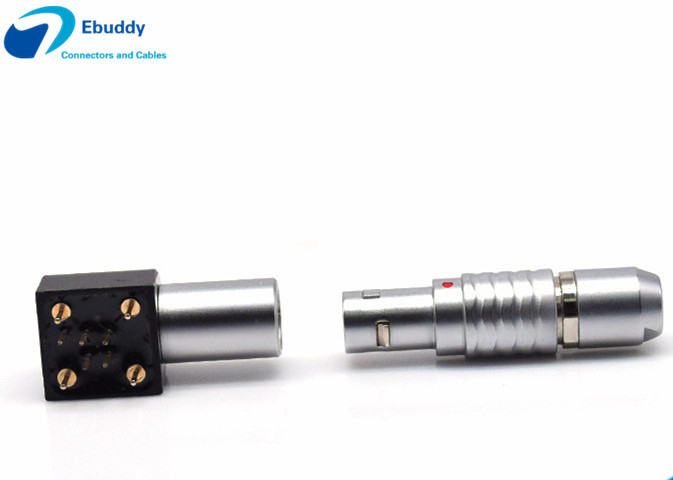

Lemo B Series Right Angle PCB Socket 5pin EPG Printed Circuit Receptacle 3

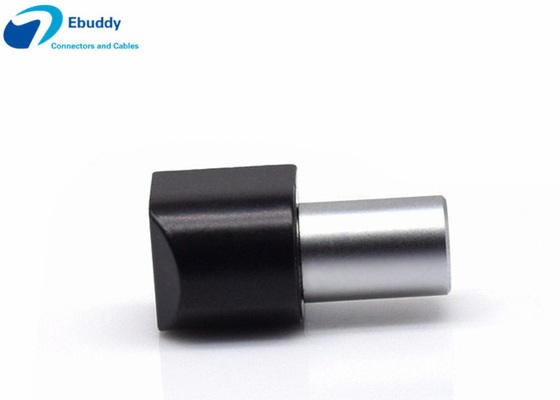

Lemo B Series Right Angle PCB Socket 5pin EPG Printed Circuit Receptacle 4
