Printed Circuit Board Connector
Created with Pixso. ECG 2B 26pin Circuit Board Power Connector With Medical Facility Panel Socket
Name
  • Name
  • Name

ECG 2B 26pin Circuit Board Power Connector With Medical Facility Panel Socket

Brand Name: Ebuddy
Model Number: ECG.2B.326.CLAD
MOQ: 1
Price: Negotiable
Delivery Time: 5-8workingdays
Payment Terms: T/T, Paypal,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS
Rated Current:
2 Amps
R (max):
8.7 MOhm
Shielding (min):
40 DB (1 GHz)
Configuration:
2B.326 : 26 Low Voltage
Pin No:
6pin
Packaging Details:
PP bag
Supply Ability:
10000pcs per month
Highlight:

pcb mount circular connector

,

right angle pcb connector

Product Description



Lemo compatible female right angle connector 6pin 1B printed circuit board connector for back panel mounting



Technical Specifications:



  • Contact Type: Solder
  • Max. Matings: 5000
  • Contact Dia.: 0.5 mm (0.02in)
  • Bucket Dia.: 0.45 mm (0.018in)
  • Max. Solid Conductor: 0.09 mm^2 (AWG 28)
  • Max. Stranded Conductor: 0.09 mm^2 (AWG 28)
  • R (max): 8.7 mOhm
  • Vtest (contact-shell): 1300 V (AC), 1840 V (DC)
  • Vtest (contact-contact): 950 V (AC), 1340 V (DC)



Others Specifications:
  • Temp (min / max): -55°C / +250°C
  • Humidity (max): <=95% [at 60 deg C /140 F]
  • Vibration: 15 g [10 Hz - 2000 Hz]
  • Shock Resistance: 100 g [ 6 ms]
  • Salt Spray Corrosion: >1000 hr
  • Climatical Category: 50/175/21
  • Shielding (min): 75 dB (10 MHz)
  • Shielding (min): 40 dB (1 GHz) IP Rating: 50
Contacts No.:
  • 00B sizes: 2, 3 and 4
  • 0B sizes: 2 3 4 5 6 7 and 9
  • 1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 and 14
  • 2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32



PCB Board drilling figure:



If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.





Please confirm 1B size and drawing as followings:

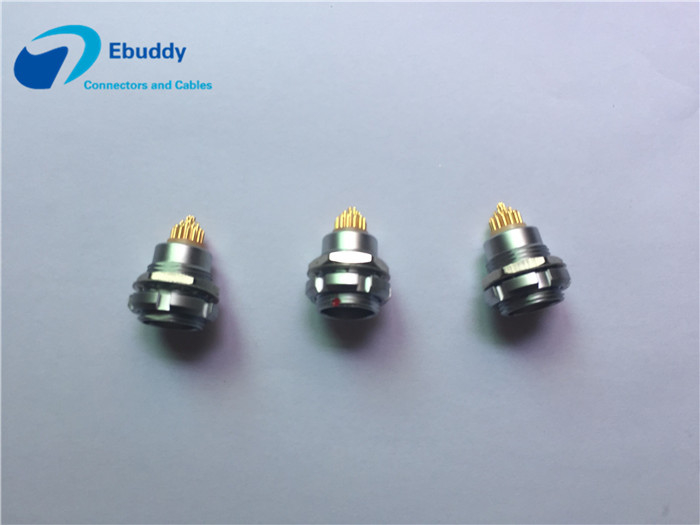

ECG 2B 26pin Circuit Board Power Connector With Medical Facility Panel Socket 0





ECG 2B 26pin Circuit Board Power Connector With Medical Facility Panel Socket 1









Tags:

pcb mount circular connector

circular pcb connector

right angle pcb connector
