Lemo Circular Push Pull Connector FWG 0B 5pin Fix Plug FWG.0B.305

Name

Lemo Circular Push Pull Connector FWG 0B 5pin Fix Plug FWG.0B.305

Brand Name:	Ebuddy
Model Number:	FWG.0B.305
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Insulator:

PPS

Series:

FWG Fix Plug

Size:

Lemo 0B

Shock Resistance:

100g.6ms

Max. Matings: 5000:

5000

IP Rating:

IP50

Resiatance To Vibration:

10-20000Hz, 15g

Warranty Time:

1 Year

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

Lemo Circular Push Pull Connector

,

FWG 0B Circular Push Pull Connector

,

5pin Fix Plug Circular Cable Connectors

Product Description

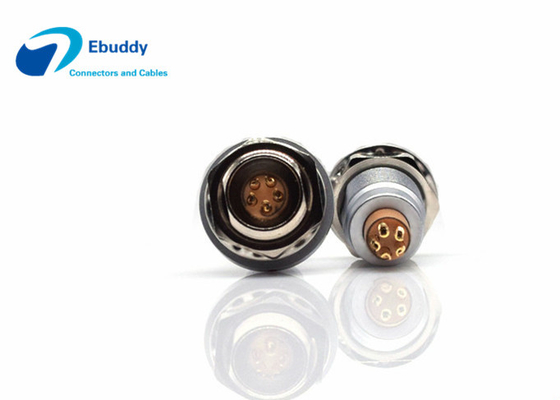

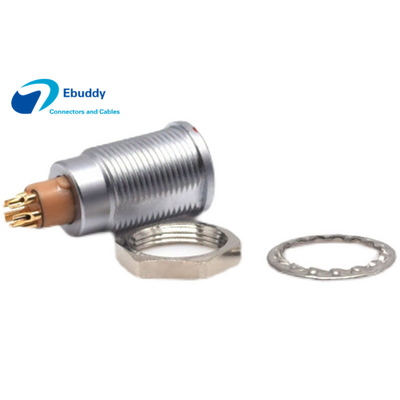

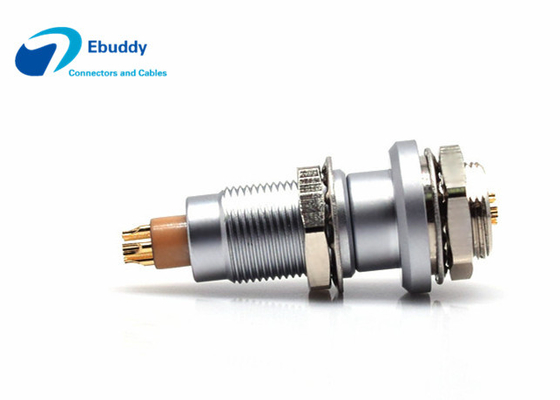

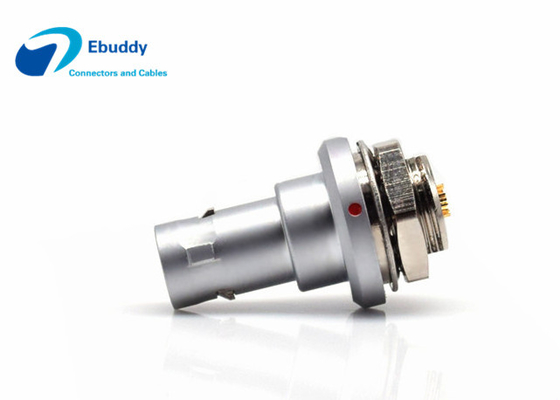

Lemo circular push pull connector FWG 0B 5pin fix plug FWG.0B.305

Description:

Shell Style/Model: FW*: Fixed plug, nut fixing
Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material: Brass (chrome plated shell and collet nut, nickel plated , brass latch sleeve and mid pieces
Configuration: 0B.305 : 5 Low Voltage
Rated Current : 6.5 Amps
Contact Type: Solder
Contact Dia.: 0.7 mm (0.028in)
Bucket Dia.: 0.8 mm (0.031in)
Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
Max. Conductor: 0.34 mm^2 (AWG 22) R (max): 6.1 mOhm
Vtest (contact-shell): 700 V (AC), 1000 V (DC)
Vtest (contact-contact): 1000 V (AC), 1400 V (DC)

Size drawing:

Lemo Circular Push Pull Connector FWG 0B 5pin Fix Plug FWG.0B.305 0

Why choose Ebuddy:

Complete compatible with lemo/odu/fischer/hirose connector with lower cost
ROHS,ISO9001:2008,UL standard
Short delivery time:7-10 days normally
Factory can produce 5000 set/week
Samples offer to check first
Cable & Connector custom service is welcome, only need you supply connectors and cable specifications detaisl, we have professinal technical group work out solution for you.

Lemo Circular Push Pull Connector FWG 0B 5pin Fix Plug FWG.0B.305 1

Lemo Circular Push Pull Connector FWG 0B 5pin Fix Plug FWG.0B.305 2

Lemo Circular Push Pull Connector FWG 0B 5pin Fix Plug FWG.0B.305 3

Lemo Circular Push Pull Connector FWG 0B 5pin Fix Plug FWG.0B.305 4

Lemo Circular Push Pull Connector FWG 0B 5pin Fix Plug FWG.0B.305 5
