Red Epic Scarlet Camera 12V DC Power Cable Male XT60 to LEMO Right Angle Female

Name: Red Epic Scarlet Camera 12V DC Power Cable Male XT60 to LEMO Right Angle Female
Brand: Ebuddy Technology Co.,Limited
SKU: Lemo 6pin to XT60
Price: Negotiable USD
Availability: InStock

Brand Name:	OEM
Model Number:	Lemo 6pin to XT60
MOQ:	1pc
Price:	Negotiable
Delivery Time:	3-7 working days
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

ConnectorA:

XT 60 2pin Connector

ConnectorB:

Lemo 6pin Female

Cable Length:

1M (Customized Acceptable)

Contact Type:

Male To Male

Application:

DIY Cable Assembly

Cable OD:

4.5MM

Packaging Details:

PP bag

Supply Ability:

90000pcs per month

Highlight:

red camera cable

arri alexa audio cable

Product Description

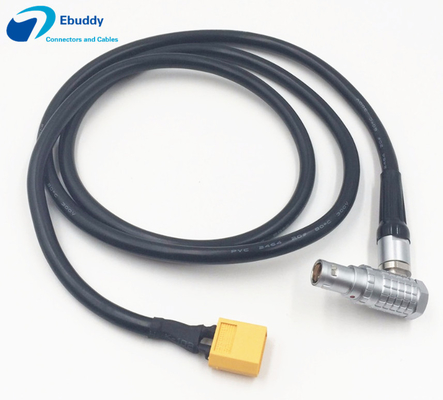

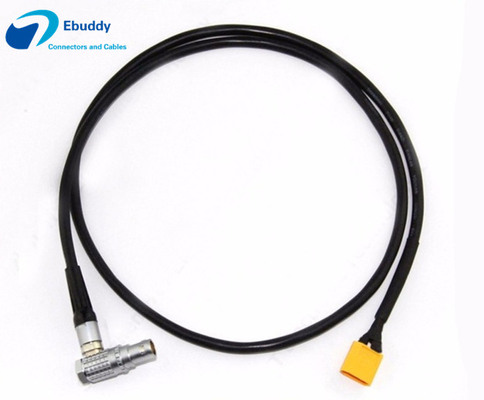

Red Epic Scarlet Camera 12V DC Power Cable Male XT60 to LEMO Right Angle Female 6 pin Cable FHJ.1B.306

Description:

LEMO Right Angle Female 6 pin to XT60 Cable
Connector A: Lemo FHJ.1B.306, Connector B: XT60 2pin male connector
Cable Length: 1m(We can customize)
Fast delivery time: 3-5working days for usual models
Application: Red Epic Scarlet Camera 12V DC Power Cable
Good quality with best competitive price, can help you save at least 50% cost

DIY cable assembly process:

Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
Screw the collet nut tightly
Hitch the sleeve to the corresponding step of collet nut.

Red Epic Scarlet Camera 12V DC Power Cable Male XT60 to LEMO Right Angle Female 0

Red Epic Scarlet Camera 12V DC Power Cable Male XT60 to LEMO Right Angle Female 1

Red Epic Scarlet Camera 12V DC Power Cable Male XT60 to LEMO Right Angle Female 2
