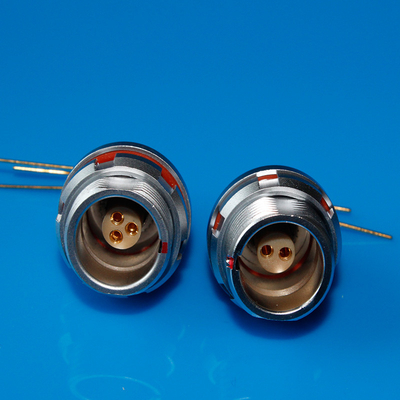

Lemo EEG PCB socket 3pin waterproof circular connector assembled inside receptacle

Name

Lemo EEG PCB socket 3pin waterproof circular connector assembled inside receptacle

Brand Name:	Ebuddy
Model Number:	EEG.1K.303.CLV
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Shell Style/Model:

Elbow Contacts For Printed Circuit

Housing Material:

Brass (chrome Plated)

Max. Matings:

5000

Temp (min / Max):

-55°C / +200°C

Contact Type:

Print (elbow)

IP Rating:

IP68

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

waterproof panel mount connector

,

waterproof cable connector

Product Description

Lemo compatible EEG K serials PCB socket 3pin waterproof circular connector assembled inside receptacle

Description:

Termination type:Female print 90° PCB
Shell Style/Model: EE*: Fixed receptacle, nut fixing, with elbow contacts for printed circuit (back panel mounting)
Contact Type: Print (elbow)
Contact Dia.: 1.3 mm (0.051in)
R (max): 3.6 mOhm
Endurance (Shell): 5000 mating cycles
Temp (min / max): -55°C / +200°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 95 dB (10 MHz)
Shielding (min): 80 dB (1 GHz) IP Rating: 68

Why choose Ebuddy

Supply 1year Warranty time
Complete compatible with lemo/odu/fischer/hirose connector with lower cost
ROHS,ISO9001:2008,UL standard
Short delivery time:7-10 days normally
Factory can produce 5000 set/week
Samples offer to check first

Insulating washer(color wheel):

Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.

Color options:

Lemo EEG PCB socket 3pin waterproof circular connector assembled inside receptacle 0

Size and Drawing

Lemo EEG PCB socket 3pin waterproof circular connector assembled inside receptacle 1

Lemo EEG PCB socket 3pin waterproof circular connector assembled inside receptacle 2
